新一代用料設計 ASUS P5K Premium
Impressived! ASUS P5K Premium

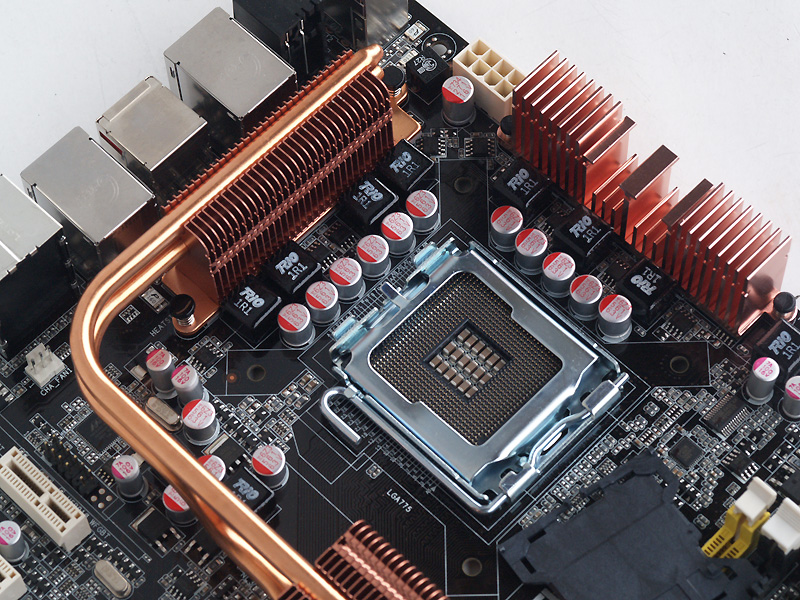

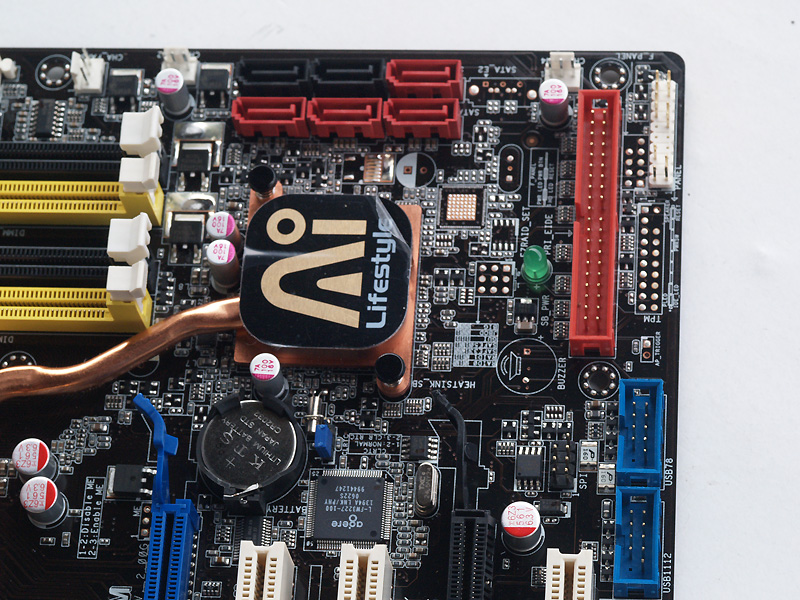

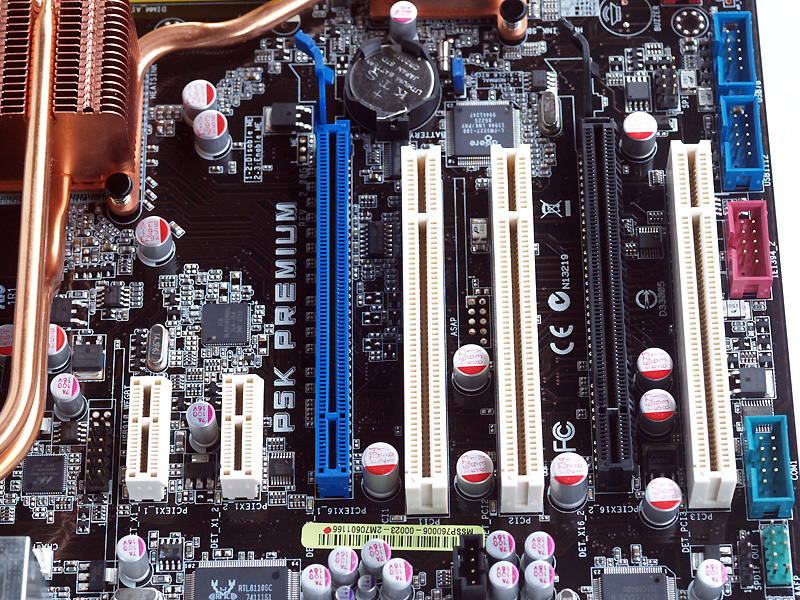

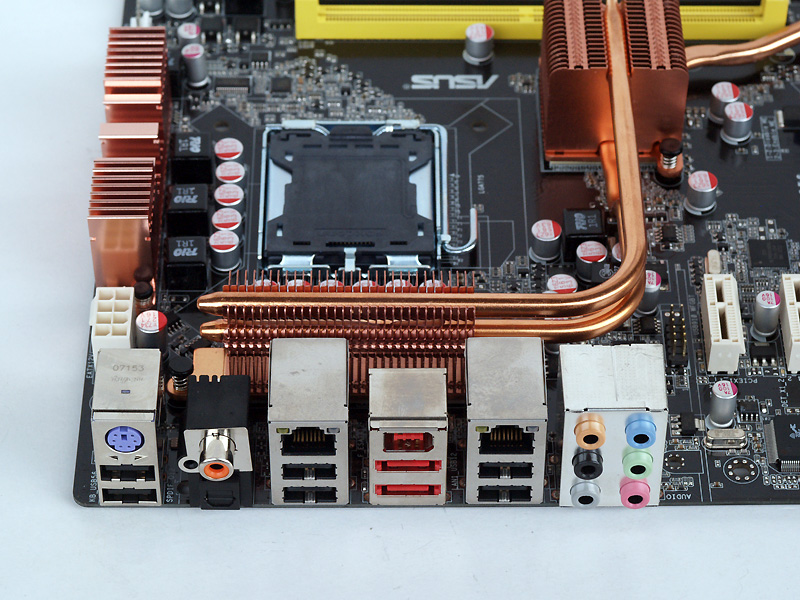

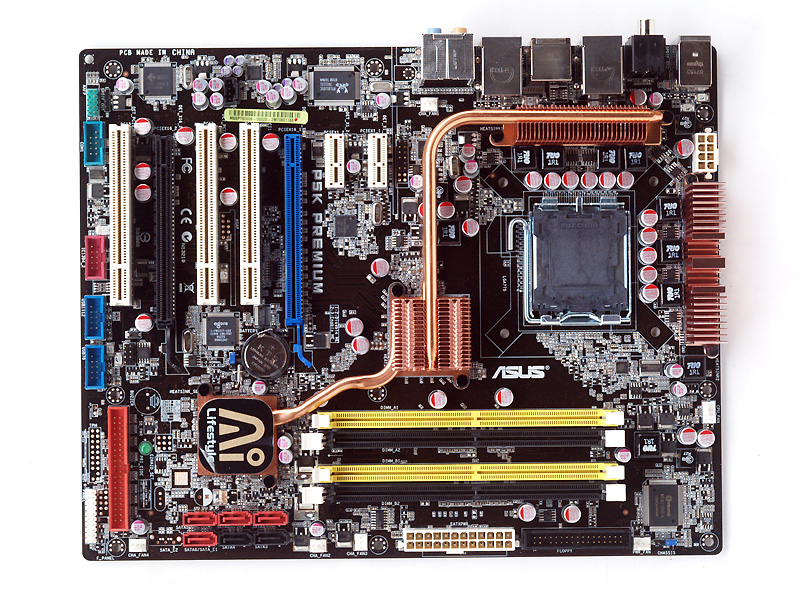

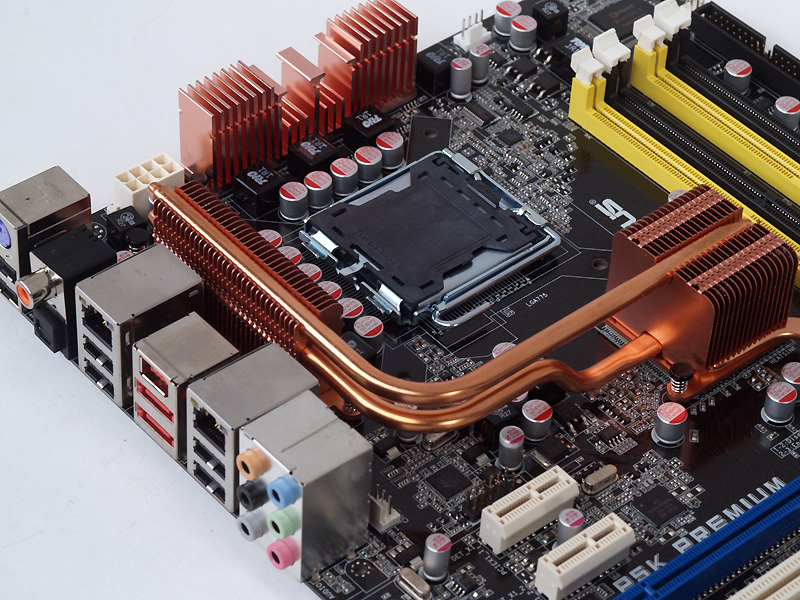

What's new feature of this babe,? though it's base on P35 ASUS is getting more effort with PWM cooling solution from this mobo, 8phase cpu pwm, and add 32pcs of mosfets, reducing the heater. 8layers PCB design and all solid caps,reduce the Noise getting more stable and u also can see , there is a strap selection,u can choose 200/266/333strap 華碩採用新用料的P35強版，減少CPU電源熱量，八相設計，可以看到MOSFET有32個 全新的全鋁殼及8層PCB LAYOUT設計，更減少噪訊增加穩定度 first at all, lets see some pictures           [B][U]16x2, 32個MOSFET  |
|||||||
2007-07-06, 05:49 PM
#1
|
|
|
Power Member
加入日期: Sep 2003
文章: 689
|

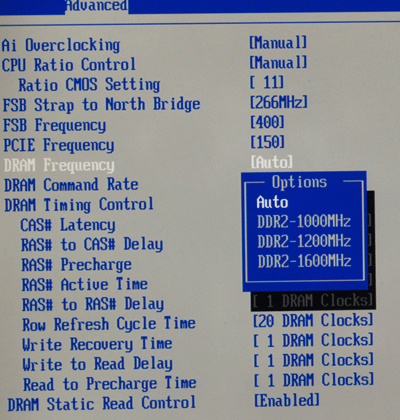

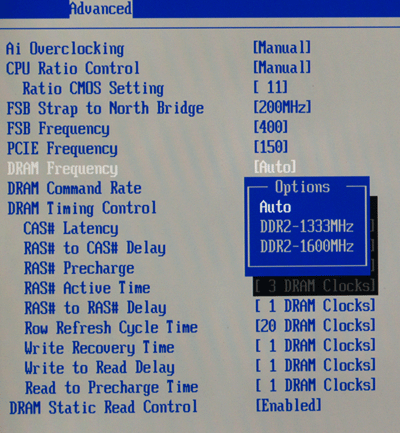

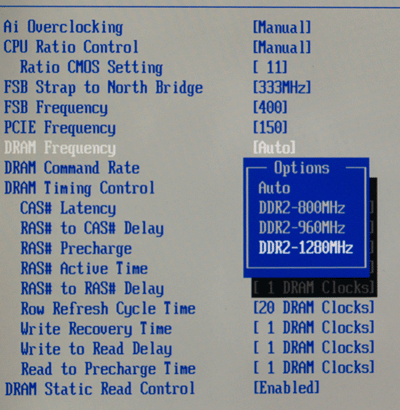

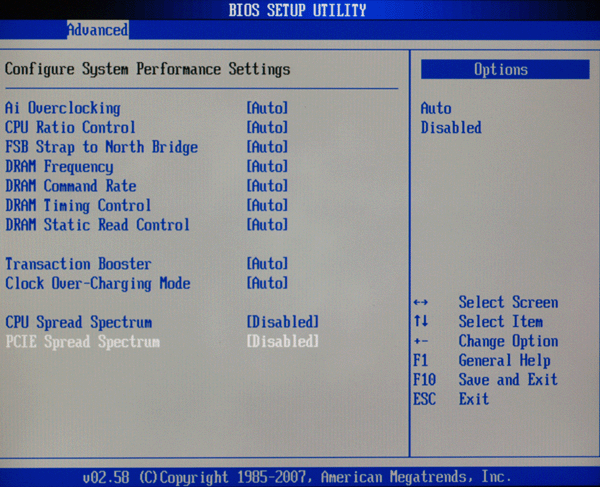

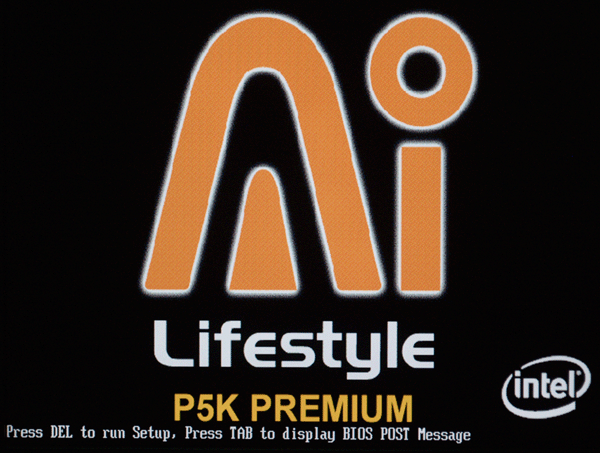

BIOS裏jumperfree超頻，可調範圍及電壓範圍
screens of Jumperfree        |
||
|
2007-07-06, 05:53 PM
#2
|
|
|
Power Member
加入日期: Sep 2003
文章: 689
|

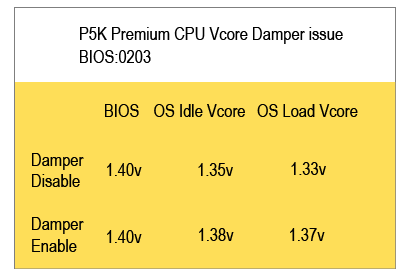

avoid vdropping when the chip is working at full speed.

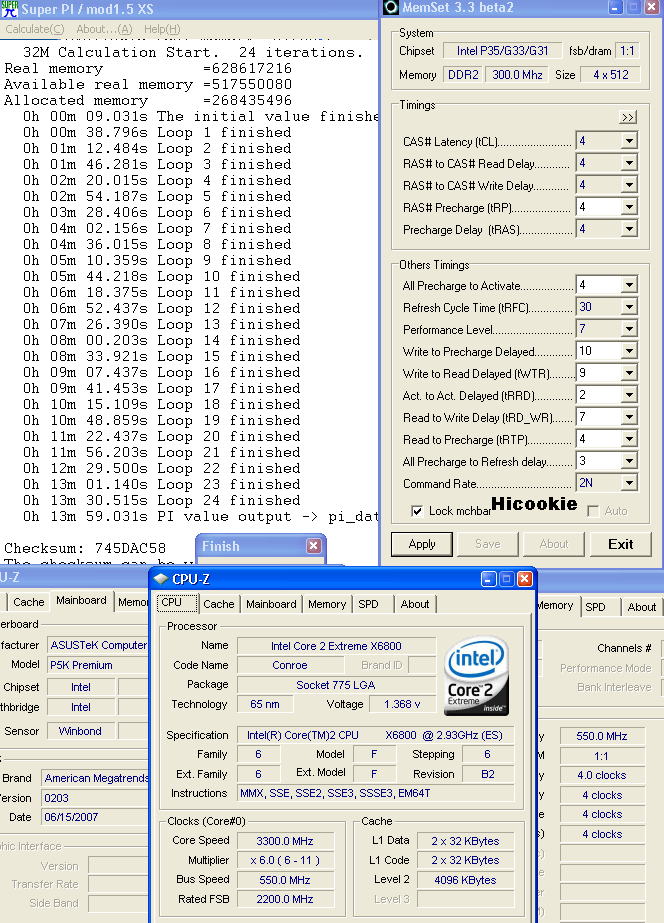

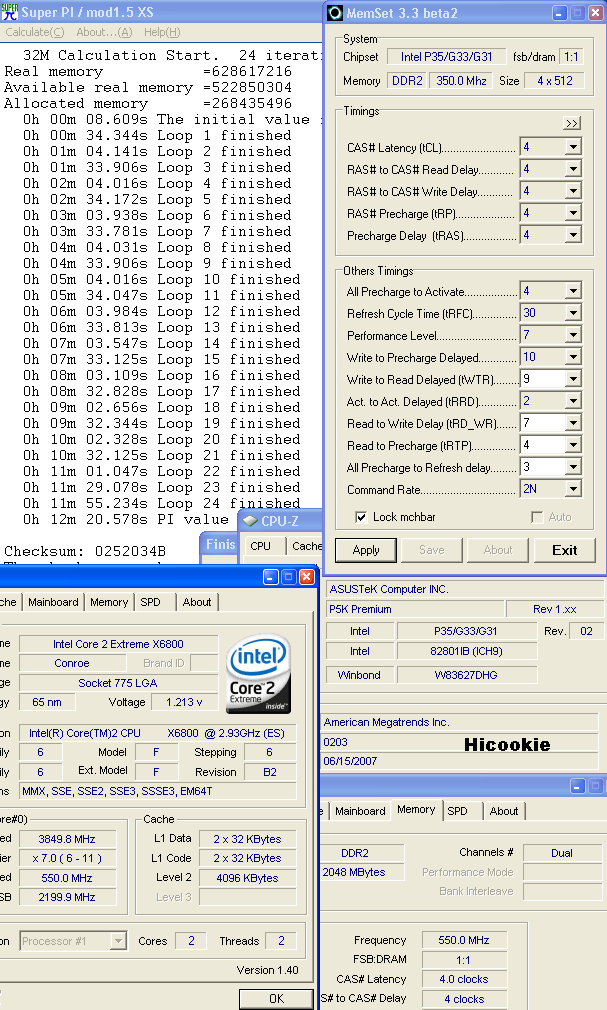

u can enable the "vcore Damper" from bios setting 要改善CPU全速掉壓情況，可在BIOS裏，開啟 VOLTAGE DAMPER 先試一下 540外頻ORTHOS，順便觀察CPU電壓  Damper off 540FSB Orthos priming. IDLE  LOAD  效能很不錯喔！ 3.3G 7X550 SUPER PI 32m 跑進14分內只有用 1333strap 2T  7X550，3.85G跑的比965P上的4G還快…  1066STRAP呢？7X500 DDR2*1250  |
|
2007-07-06, 05:55 PM
#3
|
|
|
Advance Member

加入日期: Jan 2002
文章: 306
|
請問為什麼開啟VOLTAGE DAMPER後反而電壓掉更多了 ?
何時上市及售價有人知道嗎 ? 謝謝 ! |
|
2007-07-06, 06:22 PM
#4
|
|
|
Power Member
加入日期: Sep 2003
文章: 689
|

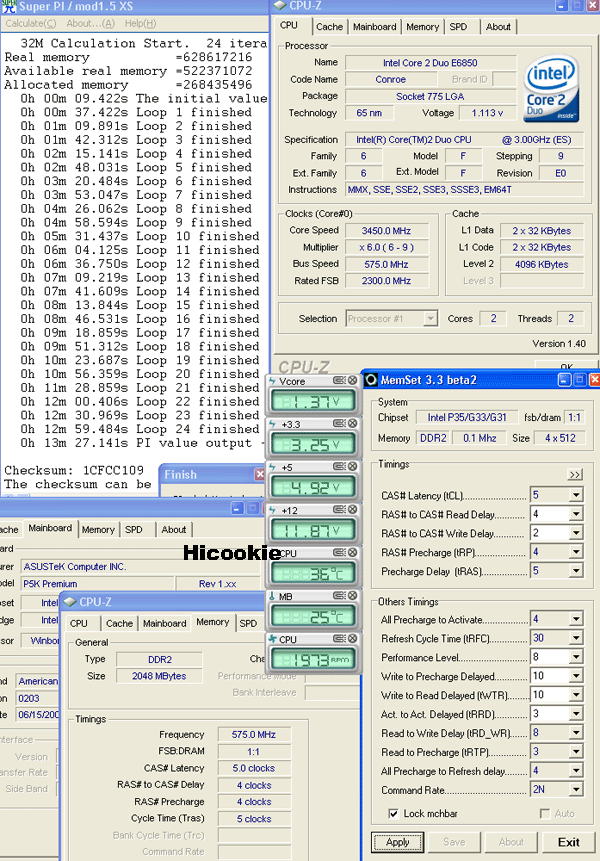

575外頻過32m
E6850 6X575 1.37v Tuniq TOWER120 Kingston PC2-9600 [email protected] DDR2-1150 5.4.4.5 WD360GD SATA ZIPPY850W MATROX PCI 8MB  |
|
2007-07-07, 08:54 AM
#5
|
|
|
Advance Member
加入日期: Aug 2006 您的住址: 台北
文章: 323
|
看來是很不錯的版子...
不知道上市價錢會是多少~? |
|
2007-07-07, 10:19 AM
#6
|
|
|
Elite Member
加入日期: Jan 2002 您的住址: 台北土城人
文章: 8,854
|
期待 + 1 ...........
順便把 P5B-D 從遊戲主力機降級到工作機..........
__________________
除了電腦、攝影，旅遊、玩車其實也是我的最愛！ ☆雙核遊戲機 E8600 oc 4.3G+P5Q-E+G'Skill-DDR2 1066 2G*2+ ATI 4870 1GB ☆四核轉檔機 Q9550 oc 3.77G+友通DK P45+創見D9-DDR2 1G*4+ nVIDIA GTX285 1GB 攝影器材： Nikon D80 Canon EOS 3 / 300D / 450D SONY W300/FujiFilm F100FD+F50fd/Sony 707/Sanyo J4
|
|
2007-07-07, 10:59 AM
#7
|
|
|
Power Member
加入日期: Sep 2003
文章: 689
|

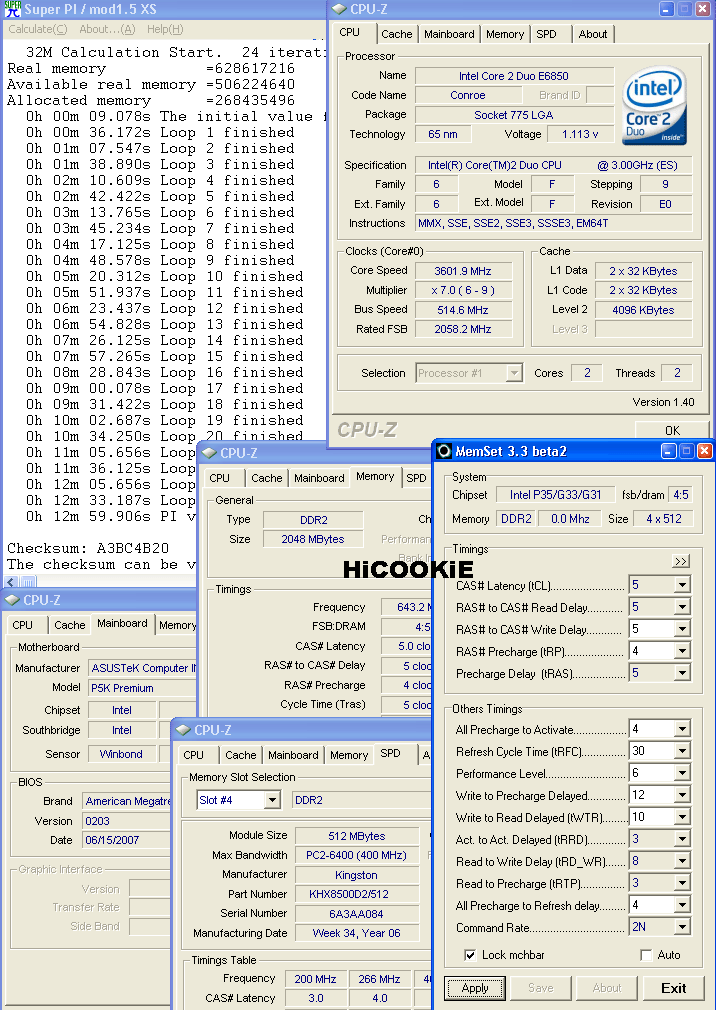

965P上不可完成的 3.6G SUB13，在 P5K PREMIUM 達成
E6850 7X514 1.37v Tuniq TOWER120 Kingston PC2-9600 [email protected] DDR2-1280 5.5.4.5 WD360GD SATA ZIPPY850W MATROX PCI 8MB  |
|
2007-07-07, 08:14 PM
#8
|
|
|
Power Member
加入日期: Sep 2003
文章: 689
|

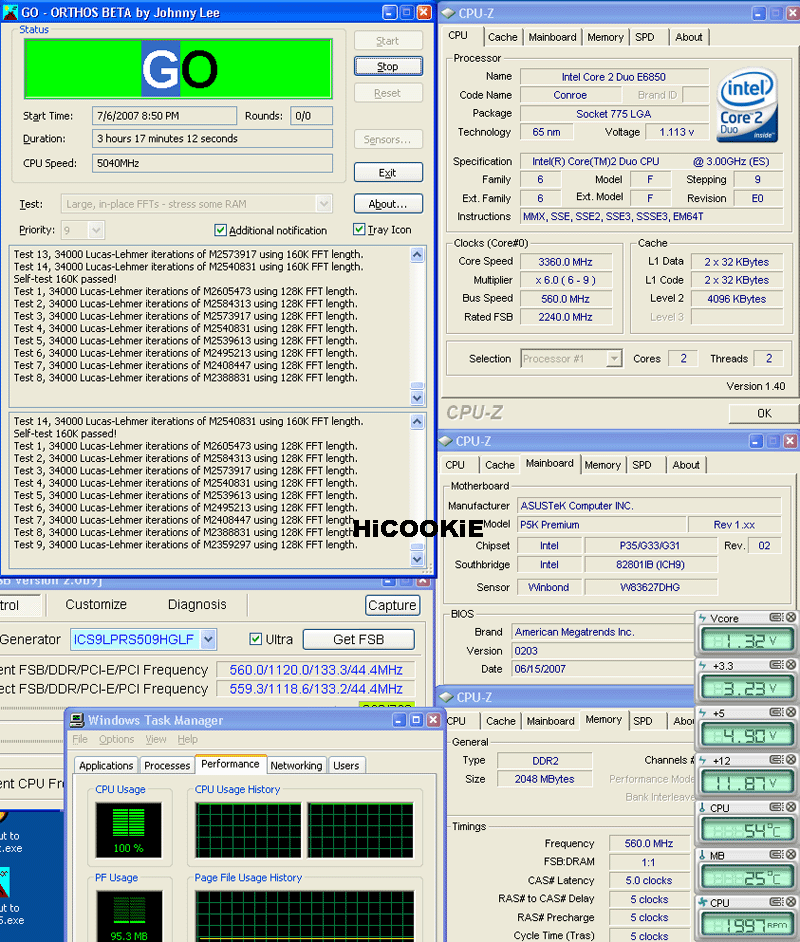

心藏大一點....空冷 560 外頻 高壓 orthos
 |
|
2007-07-07, 11:50 PM
#9
|
|
|
Major Member
加入日期: Jun 2003 您的住址: Taipei, Taiwan
文章: 130
|
哇~~這位大大的測試真是完整耶~~
這片P5K的主機板功能還真是棒!! 尤其是那全鋁質的電容~~~ 害我想要把我的P4主機升級了... 天啊~~我的小朋友唇唇欲動了!!! 不知道上市後價格是多少？ |
|
